Overview

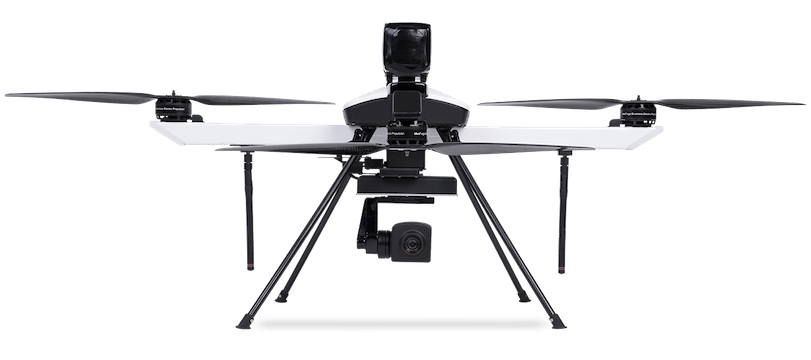

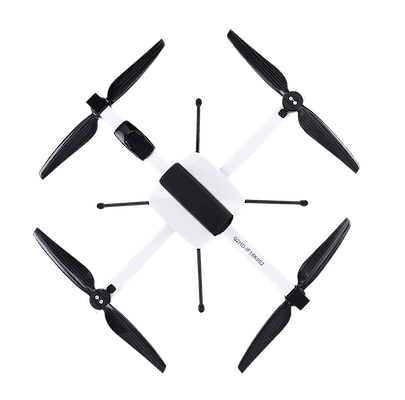

Q Series is ideaForge’s smallest short range VTOL Unmanned Aerial Vehicle (UAV) based on our best-in-class drone technology. It is ideaForge’s most economical and efficient drone built with tried-and-tested military design philosophies.

Q Series UAV can ideally be used for Surveying, Mapping, Security & Surveillance, Inspection, Photogrammetry, Traffic Management, Crowd Management & Disaster Relief.

Technical Specifications

Endurance: 25 – 40 minutes @ MSL
Range (LoS): 2 – 4 km
Weight: 3.5 kg
Wind Resistance: Up to 20 knots or 36 km/h
Max Operating Altitude: Up to 400 m AGL
Max Launch Altitude: 3000 m AMSL
Vehicle Size: 1 m x 1 m

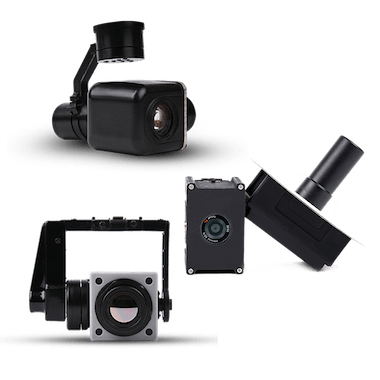

Payloads

Daylight Payload
1280 x 720 pixels, 10x Optical Zoom
Thermal Payload
640 × 480 pixels (Radiometric)
Thermal Payload (Black/White hot)
320 x 240 pixels, 640 × 480 pixels (Optional)
HD Imaging Payload
15+ MP (PPK Module Optional)

Ground Control Station (GCS) Features

Fail Safe Feature

  • Multiple GPS
  • Return home on low battery
  • Return home on high winds
  • Return home on communication
  • failure

Ground Control Station (GCS) Feature

  • Laptop/Tablet
  • Handheld controller for pan, tilt, zoom
  • High range Communication Box
  • Encrypted uplink & downlink

GCS Application Software
